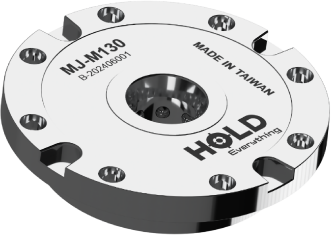

MJ-M130
Clamping Unit Type130
The Zero Point Locator Model 130 is a high-precision, high-clamping-force quick positioning device, suitable for medium to large machining centers. It enables rapid tool changes while ensuring accurate positioning.
- External Dimensions
- Large size, suitable for medium to large machining centers
- Clamping Force
- High clamping force, supports heavy-duty cutting or large fixtures
- Positioning Accuracy
- ±0.005 mm (high precision)
- Installation Flexibility
- High, suitable for primary clamping positions
- Application Range
- Medium to large machining centers, heavy-duty fixtures, automatic tool changing systems
- Structural Strength
- High rigidity, suitable for high-load machining
- Usage Advantages
- Strong clamping and stability
